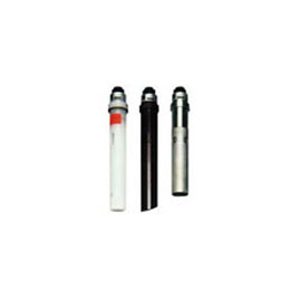

سنسور رسانایی SC8SG

تماس بگیرید

توضیحات

Specifications

Object of measurementConductivity of liquids or solutions
Measuring Principle۲-electrode or 4-electrode system
Cell Constants۰٫۰۱ cm-1 or 10 cm-1 (for 2-electrode system)
۱۰ cm-1 (for 4-electrode system)
Measuring Ranges۰ – ۰٫۵ μS/cm to 0 – 100 μS/cm for a cell constant of 0.01 cm-1
۰ – ۱ mS/cm to 0 – 1000 mS/cm for a cell constant of 10 cm-1
Temperature Range۰ to 100 deg C (130 deg C maximum only for 0.01 cm-1 cell constant detectors, excluding those with polypropylene chambers)
Pressure۱۰۰۰ KPa max. (500 kPa maximum for detectors with polypropylene chambers)
Flow rate of Sample SolutionNo particular limitation applies, although a value of less than 20 l/min is recommended for flow-through detectors.
RTD for Temperature CompensationPt1000 (built into the sensor)
ConstructionRainproof encapsulation (compatible with JIS C0920)
WeightScrew-in: approx. 1.3 kg (without the cable)
Flow-through (SCS14 chamber): approx. 3.1 kg (without the cable)
Flow-through (SCS14 chamber, flanged): approx. 4.5 kg (without the cable)
Flow-through (polypropylene chamber): approx. 2.7 kg (without the cable)
Flow-through (polypropylene chamber, flanged): approx. 3.2 kg (without the cable)
Cable: 0.3 kg for 5.5 m length; 0.5 kg for 10 m length
Process ConnectionScrew-in or flow-through
