Technical Data | |
| Version: | exchangebale cable (ø 2 mm, ø 4 mm) |
| exchangeable rod (ø 16 mm, ø 8 mm) | |
| coax (ø 42 mm, ø 21.3 mm) | |
| Measuring range: | cable probe up to 75 m |
| rod probe up to 6 m | |
| coax probe up to 6 m | |
| Process fitting: | thread from G¾ , ¾ NPT |
| flanges from DN 25, 1″ | |
| Process temperature: | -196 … +450 °C |
| Process pressure: | -1 … +400 bar (-100 … +40000 kPa) |
| Accuracy: | +/- 2 mm |
Application Area

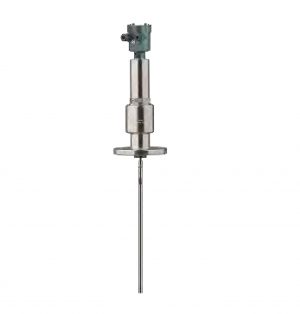

The FLEX 86Y level sensor measures maintenance-free all liquids under
extreme pressure and temperature conditions. Even in applications with buildup,
foam generation and condensation, the sensor delivers precise and reliable
measured values. In saturated steam applications, a special reference probe
ensures a density-independent measurement. The FLEX 86Y offers an
economical level and interface measurement for your application.
| وزن | 1500 گرم |
|---|---|
| ابعاد | 120 × 105 × 180 میلیمتر |
