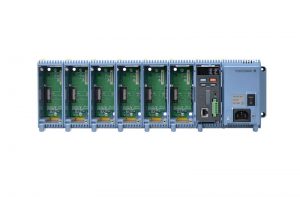

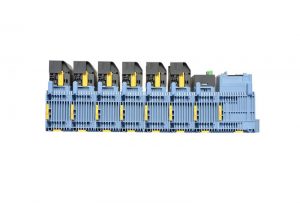

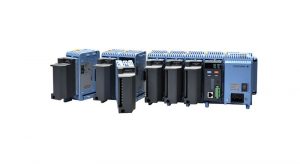

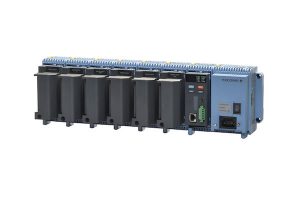

دیتا لاگر ماژولار GM10

تماس بگیرید

شناسه محصول: YO-1165 دسته: , , برچسب: , , , , , , , , , , , , , , , ,

توضیحات

Main Features

Wide-ranging input/output specifications

  • The 10 channel universal input module measures DC volts, thermocouple, RTD, and contact input signals. A 16 channel digital input module and a relay output module are also available.

    • GX90XA Analog input module: DC voltage, DC current, thermocouple, RTD, contact
    • New!　GX90XA-10-V1: High withstand voltage AI module: Max. common mode voltage 600V
    • GX90XA-04-H0 High Speed AI Module: DC voltage, DC current, thermocouple, RTD, contact
    • GX90XA-06-R1 4-Wire RTD Module: ۴-wire RTD, 4-wire resistance
    • GX90YA Analog output module: Current output (Isolated between channels)
    • GX90XD Digital input module: Remote control input or operation recording
    • GX90YD Digital output module: Alarm output
    • GX90WD Digital input/output module: Remote control input or operation recording/alarm output
    • GX90XP Pulse intput module: Pulse signal data acquisition, integral count
    • GX90UT PID control module: PID control (2 loop)

PID control

  • Enables PID and program control (max. 20 loops per system)
  • The web application enables remote operation and monitoring from a browser.
  • Setpoint program control function (up to 99 patterns)

Dual interval measurement

  • Users have the ability to choose two different scan intervals on a single GM system.

Scalability

  • Up to 420 ch per system
  • Plug and lock modules

Ease of Use

  • Web-based configuration
  • Live Web-based data viewing

Mobile Connectivity

  • Bluetooth
  • Mobile Application

Reliability

  • Secure data storage
  • High accuracy measurement
  • Automatic backfill function (GA10 Data Logging Software)

Noise Tolerance

  • Electromagnetic relay module

۲۱ CFR Part 11 support (option)

  • Supports the U.S. FDA 21 CFR Part 11 (for pharmaceutical manufacturing).

Supports 12 to 28 VDC power

  • Supports 12 to 28 VDC power so you can also use it inside automobiles.

Multi-batch Function (option)

  • Recorder pre-defined channel groups to separate data files with independent start and stop control.

SLMP Communication (Mitsubishi PLC) (option)

  • Protocol function that enables connection from a GM to Mitsubishi Electric PLCs without sequence programs.

OPC-UA Server (option)

  • Data acquired by the GM can be accessed through Ethernet communication from a host system (OPC-UA client).

Aerospace Heat Treatment Supports heat treatment application AMS2750/NADCAP

Calibration correction schedule control function (option)

  • Schedule management for periodically executing calibration correction configuration and the like.

دانلودها

Brochures
Instruction Manuals
General Specifications
Software
Technical Information
Certificates
Drawings

GX90XA

GX90XA : Analog input module

GX90XA

Specifications

ModelGX90XA
Input type
(Inputs: 10)		DC voltage*1, standardized signal*1, thermocouple*1, RTD*2, DI*1, DC current (with external shunt resistor)*1, DC current*3, resistance*4
DCV۲۰ mV, 60 mV, 200 mV, 1 V, 2 V, 6 V, 20 V, 50 V, 100 V*5
Standard signal۰٫۴-۲ V, 1-5 V
Resistance۲۰, ۲۰۰, ۲۰۰۰ Ω
ThermocoupleR, S, B, K, E, J, T, N, W, L, U, W97Re3-W75Re25, KpvsAu7Fe, Platinel 2, PR20-40, NiNiMo, W/WRe26, N(AWG14), XK GOST
RTDPt100, JPt100, Cu10 GE, Cu10 L&N, Cu10 WEED, Cu10 BAILEY, Cu10 (20°C) α=۰٫۰۰۳۹۲, Cu10 (20°C) α=۰٫۰۰۳۹۳, Cu25 (0°C) α=۰٫۰۰۴۲۵, Cu53 (0°C) α=۰٫۰۰۴۲۶۰۳۵, Cu100 (0°C) α=۰٫۰۰۴۲۵, J263B, Ni100 (SAMA), Ni100 (DIN), Ni120, Pt25, Pt50, Pt200 WEED, Cu10 GOST, Cu50 GOST, Cu100 GOST, Pt46 GOST, Pt100 GOST, PT500*4, PT1000*4
DILevel, Contact
DC current۰-۲۰ mA, 4-20 mA
Scan intervals۱/۲/۵/۱۰/۲۰/۵۰/۱۰۰/۲۰۰/۵۰۰ms, 1/2/5s

Scan interval by type

Suffix codeScan interval
۱ms۲ms۵ms۱۰ms۲۰ms۵۰ms۱۰۰ms۲۰۰ms۵۰۰ms۱s۲s۵s
-U2——————√√√√√√
-C1——————√√√√√√
-L1————————√√√√
-T1—————————√√√
-H0√√√√√√√√√√√√
-R1——————√√√√√√
-V1——————√√√√√√
Power supply and consumptionSupplied from main unit, power consumption: 2 W or less
Insulation resistanceBetween input circuits and internal circuitry: 20 MΩ or greater (at 500 V DC)
Withstand voltageBetween the input circuits and the internal circuitry: 3000 VAC for one minute (current input type and low withstand voltage type: 1500 VAC for one minute, high withstand voltage type: 3700 V AC for one minute)
Between analog input channels: 1000 V AC for one minute (excluding b terminals for universal input type) (low withstand voltage type: 400 VAC for one minute, high speed universal type: 3000 V AC for one minute)
Terminal typesM3 screw terminals or clamp terminals
WeightApprox. 0.3 kg

*۱ Cannot be set for the current input type (type suffix code: -C1) or 4-wire RTD/resistance type (type suffix code: -R1).

*۲ Cannot be set for the current input type (type suffix code: -C1), electromagnetic relay type (type suffix code: -T1), low withstand voltage type (type suffix code: -L1) or high withstand voltage type (type suffix code: -V1).

*۳ Can only be set with current input type (type suffix code: -C1).

*۴ Can only be set with 4-wire RTD/resistance type (type suffix code: -R1).

*۵ Can only be set with high speed universal type (type suffix code: -H0).

Model and Suffix Codes

ModelSuffix CodeDescription
GX90XAAnalog input module
Number of channels-۰۴۴ channels (-H0 type only)
-۰۶۶ channels (-R1 type only)
-۱۰۱۰ channels (-C1, -L1, -U2, -T1, -V1)
Type-C1Current, scanner type (isolated between channels)
-L1Low withstand voltage DCV/TC/DI, scanner type (isolated between channels)
-U2Universal, Solid state relay scanner type (3-wire RTD b-terminal common)
-T1DCV/TC/DI, Electromagnetic relay scanner type (isolated between channels)
-H0High speed universal, individual A/D type (isolated between channels)
-R1۴-wire RTD/resistance, scanner type (isolated between channels)
-V1DCV/TC/DI, high withstand voltage scannertype (Isolated between channels)
–NAlways N
Terminal form-۳Screw terminal (M3)
-CClamp terminal
AreaNGeneral

GX90YA

GX90YA : Analog output module

Specifications

ModelGX90YA
Output type (outputs: 4)Transmission output, manual output
Range۴–۲۰ mA or 0–۲۰ mA
Output update interval۱۰۰ msec (shortest)
Load resistance۶۰۰ Ω or less
Resolution۰٫۰۰۲%
Power supply and consumptionSupplied from main unit, power consumption: 3W or less
Insulation resistanceBetween output circuits and internal circuitry: 20 MΩ (at 500 VDC)
Between output channel terminals: 500 VDC, 20 MΩ or greater
Withstand voltageBetween output circuits and internal circuitry: 1500 AC for one minute
Between output circuits: 500 VAC for one minute
Terminal typeM3 screw terminals or clamp terminals
WeightApproximately 0.2 kg

Model and Suffix Codes

ModelSuffix CodeDescription
GX90YAAnalog output module
Number of channels-۰۴۴ channels
Type-C1Current output (isolated between channels)
–NAlways N
Terminal form-۳Screw terminal (M3)
-CClamped terminals
AreaNGeneral

GX90XD

GX90XD : Digital input module

GX90XD

Specifications

ModelGX90XD
Input types
(Inputs: 16)		DI or pulse input*1 (Open collector or non-voltage contact)
ON/OFF detectionOpen collector: Voltage of 0.5 V DC or less when ON, leakage current of 0.5 mA or less when OFF
Non-voltage contact: Resistance of 200 Ω or less when ON, 50 kΩ when OFF
Contact rating۱۲ V DC, 20 mA or more
Power supply and consumptionSupplied from main unit, power consumption: 0.7 W or less
Insulation resistanceBetween input terminals and internal circuitry: 20 MΩ or greater (at 500 V DC)
Withstand voltageBetween input terminals and internal circuitry: 1500 V AC for one minute
Terminal typesM3 screw terminals or clamp terminals
WeightApprox. 0.3 kg

Pulse input specifications*1

Counting systemThe rising edge of the pulse is counted.
Max. pulse period۲۵۰Hz (The chattering filter : OFF)
۱۲۵Hz (The chattering filter : ON)
Minimum detection pulse widthLow (close), High (open), both is 2 ms or more
Pulse detection period۱ms
Pulse measurement accuracy± ۱ pulse
Pulse count intervalMeasurement interval

Filter

The chattering filter can be switched On/Off. (When the chattering filter is off, connect GX/GP so that it is not affected by the noise.)

*۱ Integration requires the math function (optional code /MT).

Model and Suffix Codes

ModelSuffix CodeDescription
GX90XDDigital input module
Number of channels-۱۶۱۶ channels
Type-۱۱Open collector/Non-voltage, contact (shared common), Rated 5 VDC
–NAlways N
Terminal form-۳Screw terminal (M3)
-CClamp terminal
AreaNGeneral

GX90YD

GX90YD : Digital output module

GX90YD

Specifications

ModelGX90YD
Output types (outputs: 6)Relay contact (c contact)
Rated load voltage۱۰۰ to 240 V AC or 5 to 24 V DC
Max. load voltage/current۲۶۴ VAC or 26.4 VDC, 3A/point (resistance load)
Power supply and consumptionSupplied from main unit, power consumption: 1.4 W or less
Insulation resistanceBetween output terminals and internal circuitry: 20 MΩ (at 500 VDC)
Withstand voltageBetween output terminals and internal circuitry: 3000 V AC for one minute
Terminal typesM3 screw terminals
WeightApprox. 0.3 kg

Model and Suffix Codes

ModelSuffix CodeDescription
GX90YDDigital output module
Number of channels-۰۶۶ channels
Type-۱۱Relay, SPDT(NO-C-NC)
–NAlways N
Terminal form-۳Screw terminal (M3)
AreaNGeneral

GX90EX

GX90EX : Expansion module

GX90EX

Model and Suffix Codes

ModelSuffix CodeDescription
GX90EXI/O expansion module
Port-۰۲۲ Ports
Type-TP1Twisted pair cable
–NAlways N
Area-NStandard accessories

GX90WD

GX90WD : Digital input/output module

GX90WD

Specifications

ModelGX90WD
Input types
(Inputs: 8)		DI or pulse input*1 (Open collector or non-voltage contact)
ON/OFF detectionOpen collector : Voltage of 0.5 V DC or less when ON, leakage current of 0.5 mA or less when OFF
Non-voltage contact : Resistance of 200 Ω or less when ON, 50 kΩ when OFF
Contact input rating۱۲ VDC, 20 mA or more
Output type (outputs: 6)Relay contact (C contact)
Rated load voltageWhen connected to the main circuit (fi rst-order power supply), 150 VAC or less
When connected to a circuit derived from the main circuit (second-order power supply), 250 VAC or less (the main circuit is 300 VAC or less and uses an isolated transformer) or 30 VDC or less
Max. load current۲ A (DC)/2 A (AC), resistive load
Power consumption۱٫۹ W or less
Insulation resistanceBetween input terminals and internal circuitry: 20 MΩ or greater (at 500 VDC)
Between output terminals and internal circuitry: 20 MΩ or greater (at 500 VDC)
Withstand voltageBetween input terminals and internal circuitry: 1500 VAC for one minute
Between output terminals and internal circuitry: 3000 VAC for one minute
Terminal typesM3 screw terminals
WeightApprox. 0.3 kg

Each unit (GX/GP main unit and expandable I/O), can use 1 module only.

Pulse input specifications*1

Counting systemThe rising edge of the pulse is counted.
Max. pulse period۲۵۰Hz (The chattering filter : OFF)
۱۲۵Hz (The chattering filter : ON)
Minimum detection pulse widthLow (close), High (open), both is 2 ms or more
Pulse detection period۱ms
Pulse measurement accuracy± ۱ pulse
Pulse count intervalMeasurement interval

Filter

The chattering filter can be switched On/Off. (When the chattering filter is off, connect GX/GP so that it is not affected by the noise.)

*۱ Integration requires the math function (optional code /MT).

Model and Suffix Codes

ModelSuffix CodeDescription
GX90WDDigital input/output module
Number of channels-۰۸۰۶۸ channel DIs, 6 channel DOs
Type-۰۱Open collector/non-voltage contact (shared common), rated 5 VDC; Relay, SPDT, (NO-C-NC)
–NAlways N
Terminal form-۳Screw terminal (M3)
AreaNGeneral

GX90XP

GX90XP : Pulse input module





Specifications

ModelGX90XP
Number of inputs۱۰
Measurement interval۱۰۰ ms (shortest)
Input typeContact (open collector, voltage-free contact), level (5 V logic)
Input rangeUp to 20 kHz*
* ۳۰ Hz when the chattering filter is in use (On)
Minimum detection pulse width۲۵ μs*
* ۱۵ ms when the chattering filter is in use (On)
Measurement accuracyCount ± ۱ pulse
During integration, the following accuracies are added.
Upon MATH start: +1 measuring period
Upon MATH stop: -1 measuring period
* Integration requires the math function (optional code /MT).
Chattering filterRemoves chattering up to 5 ms (can be turned on/off on each channel)
Hysteresis widthApprox. 0.2 V
Contact, transistor ratingContact: 15 V DC or higher and 30 mA or higher rating.
Minimum applicable load current 1 mA or less.
Transistor: With the following ratings: Vce > 15 VDC, Ic > 30 mA
Maximum input voltage±۱۰ V DC
Insulation resistanceBetween input terminals and internal circuitry:
۲۰ MΩ or greater at 500 V DC
Withstand voltageBetween input terminals and internal circuitry: 1500 V AC for 1 minute

Model and Suffix Codes

ModelSuffix codeDescription
GX90XPPulse input module
Number of channels-۱۰۱۰ channels
Type-۱۱DC voltage/open collector/non-voltage contact (shared common), rated 5 VDC
—NAlways N
Terminal form-۳Screw terminal (M3)
-CClamp terminal
AreaNGeneral

GX90UT

GX90UT : PID control module

Specifications

ModelGX90UT
Control loopsNumber of loops۲
Analog input (measured input)Measured points۲
Measurement typeDC voltage (DCV)/standardized signal, TC/RTD, DI (LEVEL and non-voltage contact)/DC current (with external shunt resistance)
Scan (control) interval۱۰۰ ms or 200 ms (system global setting)
Analog output (control output/transmission output/sensor power supply)Outputs۲
Output typePower supply for current, voltage pulse, or sensors.
Current output: 4-20 mA or 0-20 mA
Voltage pulse output: ON voltage = 12 VDC or more (load resistance 600 Ω or more), OFF voltage = 0.1 VDC or less
Can be used as a sensor power supply (13.0-18.3 VDC)
Digital input (switching the SP, operation mode, etc.)Inputs۸
Input formatNon-voltage contact and open collector
Contact rating: 12 VDC or more, 20 mA or more
Digital output (of alarms, events, etc.)Outputs۸
Output formatOpen collector (sink type)
Output contact capacityMax 24 VDC, 50 mA
Withstand voltage/insulation resistanceSee PID control module general specifications (GS 04L51B01-31EN)
Terminal typeM3 screw terminals
WeightApproximately 0.3kg

Model and Suffix Codes

ModelSuffix CodeDescription
GX90UTPID control module
Number of loops-۰۲۲ loops
Type-۱۱۸ DIs, 8 DOs
—NAlways N
Terminal form-۳Screw terminals (M3)
AreaNGeneral

نقد و بررسی‌ها

هنوز بررسی‌ای ثبت نشده است.

.فقط مشتریانی که این محصول را خریداری کرده اند و وارد سیستم شده اند میتوانند برای این محصول دیدگاه(نظر) ارسال کنند.

محصولات مرتبط
