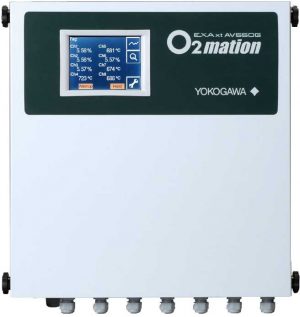

سیستم آنالایزر اکسیژن چندکاناله ZR22_AV550G

تماس بگیرید

توضیحات

Features

  • Full color touch screen operation

  • Multiple display modes shows average data, single detector or all detector gas concentrations

  • Handles input of up to 8 oxygen detectors

  • Redundant system using multiple CPUs

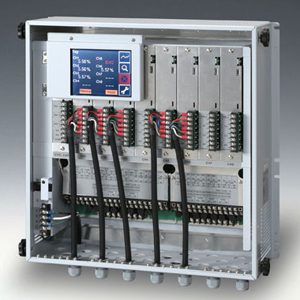

  • “Hot swap” of channel cards to minimize analyzer down time

  • Eight 4/20mA outputs for individual detectors

  • Three 4/20mA outputs for average oxygen concentration outputs

  • Failed, in calibration, or alarming, detectors are automatically excluded from average calculations

  • Automatic or manual type calibration methods

  • ۲۴V or 120VAC auto-calibration power option

  • Allows contact input, calibration activation, range change and detector performance validation

  • Intuitive “common language” operation

  • Housing temperature alarm to notify user of over temperature conditions on the electronics

  • Trend graphing – allows trend view and stacked trend view of oxygen concentrations

  • Smart calibration – uses historical calibration data to estimate when the next calibration should occur

  • Asymmetry alarm – uses historical calibration data to determine possible measurement errors due to process condition changes

  • Remote Validation – permits control room activation of zero, span or midpoint gas concentrations without running an actual calibration.

  • Cal line purge function – allows the gas purge of calibration lines of condensation before the detector is heated up to prevent water damage to the zirconia cell.
