Radar sensor for continuous level measurement of liquids
Your benefit
Maintenance-free operation through non-contact measuring principle
High plant availability, because wear and maintenance-free
Reliable measurement independent of process conditions
Technical data
Measuring range: up to 35 m
Process fitting: thread from G1½, 1½ NPT , flanges from DN 50, 2″
Process temperature: -40 … +150 °C
Process pressure: -1 … +16 bar (-100 … +1600 kPa)
Accuracy: +/- 8 mm
SIL qualification: optionally up to SIL2

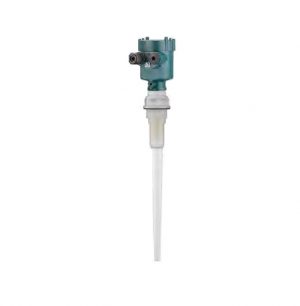

The PULS 65Y is a radar sensor for continuous measurement of liquids under
simple process conditions. It is particularly suitable for level measurement in
vessels with small process fittings and under simple process conditions. The slim
rod antenna enables the installation in small vessel openings.
| وزن | 1500 g |
|---|---|
| ابعاد | 120 × 105 × 180 mm |
