توضیحات

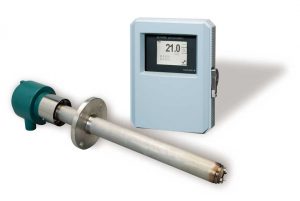

General Purpose Specification | |
| Measurement object | Oxygen concentration in combustion exhaust gas and mixed gas |
| Measurement system | Zirconium oxide sensor |
| Measurement range | ۰٫۰۱ to 100 vol% O2 |
| Output signal | ۴ to 20 mA DC, two points (ZR402G) (maximum load resistance 550Ω) |
| Setting range | Any setting in the range of 0 – 5 vol%O2 to 0 – 100 vol%O2 (in 1 vol% O2), or partial range |
| Digital communication (HART) | ۲۵۰ to 550Ω, depending on number of field devices connected to the loop (multi-drop mode) |
| Sample gas pressure | -۵ to +250 kPa (Pressure compensation option necessary over +5 kPa) |
| Sample gas temperature | ۰ to 700℃ (Probe only) |
| ۷۰۰ to 1871℃ (with 0.15m probe with JIS 5K 32 FF flange and ZR22P High Temperature Probe Adapter) | |
| Probe length | ۰٫۱۵, ۰٫۴, ۰٫۷, ۱٫۰, ۱٫۵, ۲٫۰, ۲٫۵, ۳٫۰, ۳٫۶, ۴٫۲, ۴٫۸, ۵٫۴ m |
| Contact output | Four points (one is fail-safe, normally open) |
| Contact input | Two points |
| Calibration | Method; zero/span calibration |
| Calibration mode; automatic, semi-automatic and manual (with an LCD touchscreen) | |
| Construction of detector (ZR22G) | Heater and thermocouple replaceable construction. |
| Non-explosion-proof. Equivalent to NEMA4X/IP66 | |
| Construction of converter (ZR402G) | Non-explosion-proof, outdoor installation, equivalent to NEMA4X/IP66 |
| Ambient Temperature | Probe (ZR22G): -20 to 150℃ |
| Converter (ZR402G): -20 to 55℃) | |
| Reference Gas System | Instrument Air (preferred): 50 kPa (200 kPa with check valve) + the pressure inside the furnace; Approx. 1 Nl/min consumption |
| Natural convection | |
| Power supply | ۸۵ to 264 V AC; 45 to 66 Hz |
Hazardus Area Specification | |
| Measurement object | Oxygen concentration in combustion exhaust gas and mixed gas |
| Measurement system | Zirconium oxide sensor |
| Explosion-proof Approval | ZR22S-A (ATEX); EEx d IIB + H2 T2 Gb, Ex tb IIIC T300°C Db |
| ZR22S-B (FM); Class I, Division1, Groups B, C and D | |
| ZR22S-C (CSA); Class I, Division1, Groups B, C and D | |
| ZR22S-D (IECEx); Ex d IIB + H2 T2 Gb, Ex tb IIIC T300°C Db | |
| ZR22S-K (KOSHA); Ex d IIB + H2 T2 | |
| Measurement range | ۰٫۰۱ to 100 vol% O2 |
| Output signal | ۴ to 20 mA DC, two points (ZR402G) (maximum load resistance 550Ω) |
| Setting range | Any setting in the range of 0 – 5 vol%O2 to 0 – 100 vol%O2 (in 1 vol% O2), or partial range |
| Digital communication (HART) | ۲۵۰ to 550Ω, depending on number of field devices connected to the loop (multi-drop mode) |
| Sample gas pressure | ±۵kPa |
| For 0.15m probe, -0.5 to +5 kPa. | |
| No pressure fluctuation in the furnace should be allowed | |
| Sample gas temperature | ۰ to 700℃ |
| ۷۰۰ to 1871℃ (with 0.15m probe with JIS 5K 32 FF flange and ZR22P High Temperature Probe Adapter (certain options only)) | |
| Probe length | ۰٫۱۵, ۰٫۴, ۰٫۷, ۱٫۰, ۱٫۵, ۲٫۰ m |
| Contact output | Four points (one is fail-safe, normally open) |
| Contact input | Two points |
| Calibration | Method; zero/span calibration |
| Calibration mode; automatic, semi-automatic and manual (with an LCD touchscreen) | |
| Construction of detector (ZR22S) | Heater and thermocouple replaceable construction, equivalent to NEMA4X/IP66 |
| Construction of converter (ZR402G) | Non-explosion-proof, outdoor installation, equivalent to NEMA4X/IP66 |
| Ambient Temperature | -۲۰ to +60℃ (-۲۰ to +150℃ on the terminal box surface) (ZR22S) |
| -۲۰ to +55℃ (ZR402G) | |
| Reference Gas System | Instrument Air: 50 kPa + the pressure inside the furnace; Approx. 1Nl/min consumption |
| Wiring Connection | ATEX; M20 by 1.5 mm or 1/2 NPT select one type (4 pieces) |
| FM; 1/2 NPT (4 pieces) | |
| CSA; 1/2 NPT (4 pieces) | |
| IECEx; M20 by 1.5 mm or 1/2 NPT select one type (4 pieces) | |
| Power supply | ۸۵ to 264 V AC; 45 to 66 Hz |
Performance Specification | |
| Repeatability | ±۰٫۵% Maximum value of set range |
| Linearity | ±۱% Maximum value of set range |
| Drift | ±۲% Maximum value of set range/month |
| Response time (T90) | ۹۰% response within 5 sec (60 sec for explosion-proof ZR22S) |
Calibration Options
M1233SR Portable Calibration Kit
This portable calibration kit is designed for applications where there is no permanently mounted calibration solution and can be used with any ZR probe. It consists of two 103 L calibration gas bottles (1% O2, balance N2 for zero and 21% O2, balance N2 for span), two 0.5 L/min flow regulators, ten feet of tygon tubing, and one 1/4″ NPT to 1/8″ barb fitting, all contained in a hard carrying case with a shoulder strap.
MC1 Manual Calibration Panel
The MC1 can be used to calibrate the sensor and monitor reference air delivery for any ZR probe. The panel allows easy operator adjustment of calibration and reference gas flow rates, as well as manual switching between zero and span calibration gases. The panel requires standard clean, dry, instrument air for reference air and span calibration gas, and also requires zero calibration gas.
AC1 Automatic Calibration Unit
This automatic calibration unit can be used to calibrate the sensor and monitor reference air delivery for any ZR probe attached to the ZR402G analyzer. Calibration is simplified by allowing the whole calibration procedure to be done from the analyzer’s interface (or remotely) in semi-automatic mode, or by setting a timed automatic calibration in the ZR402G. The solenoid valves also have manual overrides for troubleshooting or performing a manual calibration if desired. The unit requires standard clean, dry, instrument air for reference air and span calibration gas, and also requires zero calibration gas.
IAC-24 Compact Automatic Calibration Unit
This automatic calibration unit is directly mounted to the ZR22G probe’s reference and calibration ports. Calibration is simplified by allowing the whole calibration procedure to be done from the analyzer’s interface (or remotely) in semi-automatic mode, or by setting a timed automatic calibration in the ZR402G. This unit does not have manual overrides and must be used in indoor applicaitons only. The unit requires standard clean, dry, instrument air for reference air and span calibration gas, and also requires zero calibration gas.
Filtters
M1234SE-A (Self-Cleaning) and M1200DB-06 (Standard) Fly-Ash Filters
The accumulation of fly-ash on the zirconia cell affects its ability to measure oxygen concentration.
Fly-ash and its constituents can reduce the life of the zirconia cell and affect the cells response time
to changes in gas concentration. Yokogawa’s large surface area sintered metal filters are designed
to keep particulate and ash off the measurement cell.
E7042UQ Oil/Gas Dust Filter
This filter is used to protect the cell from corrosive dust components in natural gas or oil-fired applications.
Cables
WZ-H Heater and Signal Cabling
Two cables are needed to connect a ZR22 to an AV550G or ZR402G. One heater cable set is necessary to send power from the analyzer to the heater assembly on the probe, and one signal cable set is used to provide the analyzer with information about the probe’s cell voltage, thermocouple reading, and remote junction temperature for compensation. We recommend running these cables in separate conduit to avoid heater wires having an affect on the signal wire readings.
