Your Benefits
Maintenance-free operation through non-contact measuring principle
Reliable measurement independent of product features
Price-favourable solution for simple applications
Measuring range: in liquids: 0.25 … 5 m
in bulk solids: 0.25 … 2 m
Process fitting: thread G1½, 1½ NPT
Process temperature: -40 … +80 °C
Process pressure: -0.2 …+2 bar (-20 … +200 kPa)
Accuracy: +/- 10 mm
SIL qualification: optionally up to SIL2

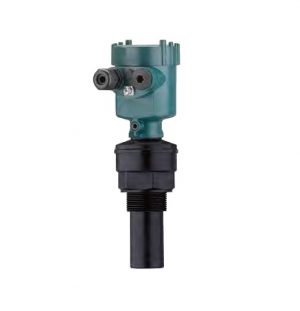

The SON 61Y is an ultrasonic sensor for continuous level measurement of liquids or
bulk solids. Typical applications are the measurement of liquids in storage tanks or
open basins. The sensor is also suitable for the detection of bulk solids in small
vessels or open containers. The non-contact measuring principle is independent of
product features and allows a setup without medium.
| وزن | 1500 گرم |
|---|---|
| ابعاد | 120 × 105 × 180 میلیمتر |
