توضیحات

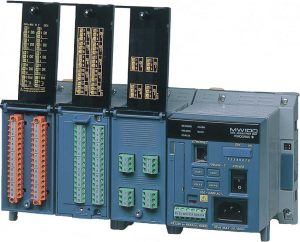

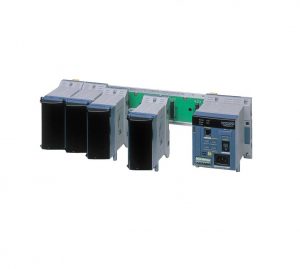

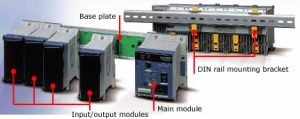

A custom MW100 measuring system is comprised of three elements; the MW100 main module, MX Series input/output modules, and MX150 Series base plate. The system can be bench mounted as-is or DIN rail mounted for rack or panel installations. A DIN rail-mounting bracket is included with the MX150.
The input/output modules, base plate, and accessories are all the same as those for the MX100 DAQMASTER series (AC adapter is for the MW100 only).
Input Modules
| Name | Model | Number of channels | Shortest measurement interval | Description |
|---|---|---|---|---|
۱۰ channel pulse input module  | MX114-PLS-M10 | ۱۰ | ۱۰۰ ms | Non-voltage contact /Open collector (۱۰,۰۰۰ sample/sec integration speed) |
| ۳۰ ch general purpose input module with 500 ms scan speed | MX110-VTDL30 | ۳۰ | ۵۰۰ ms | Clamp terminal, DCV/TC/DI |
| MX110-VTDL30/H3 | ۳۰ | ۵۰۰ ms | M3 screw terminal, DCV/TC/DI |
| Name | Model | Number of channels | Shortest measurement interval | Description |
|---|---|---|---|---|
| Universal Input Modules | MX110-UNV-H04 | ۴ | ۱۰ ms | DC voltage, thermocouple, 3-wire RTD, DI (non-voltage contact, Level (5 V logic)). Mixed input allowed. |
| MX110-UNV-M10 | ۱۰ | ۱۰۰ ms | DC voltage, thermocouple, 3-wire RTD, DI (non-voltage contact, Level (5 V logic)). Mixed input allowed. | |
| ۴-Wire RTD and Resistance Input Module | MX110-V4R-M06 | ۶ | ۱۰۰ ms | DC voltage, 4-wire RTD, 4-wire resistance, DI (non-voltage contact, Level (5 V logic)). Mixed input allowed. |
| Strain Input Modules | MX112-B12-M04 | ۴ | ۱۰۰ ms | Built-in bridge resistance of 120 ohm |
| MX112-B35-M04 | Built-in bridge resistance of 350 ohm | |||
| MX112-NDI-M04 | For connection with an external bridge head and strain gauge type sensor (NDIS connector)) | |||
| ۵ V Digital Input Module | MX115-D05-H10 | ۱۰ | ۱۰ ms | Non-voltage contact, open collector, and Level (5 V logic). Mixed input allowed. |
| ۲۴ V Digital Input Module | MX115-D24-H10 | ۱۰ | ۱۰ ms | Level (24 V logic), Vth = 12 V |
Output Modules
| Name | Model | Number of channels | Ouput update interval | Description |
|---|---|---|---|---|
| Analog Output Module | MX120-VAO-M08 | ۸ | ۱۰۰ ms | Allows mixed voltage (±۱۰ V) and current (4-20 mA) output |
| PWM Output Module | MX120-PWM-M08 | ۸ | ۱۰۰ ms | Pulse width modulation output module |
| Digital Output Module | MX125-MKC-M10 | ۱۰ | ۱۰۰ ms | "A" contact (SPST) |
Base Plate

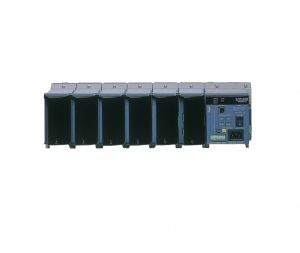

Base plates available for all configurations, from 1 to 6 input/output modules.
When used for the MW100/MX100, you must replace the attachment with the one that comes standard with the MW100/MX100.
Accessories
Connector Covers
Connector covers for open slots
AC Adapter (772075)
AC adapter for the DC power model.
Operating temperature range: 0 to 40°
*Only for the MW100
Accessories (Removable Terminal)
All input/output terminals are removable except for those of the MX112-NDI-M04. If multiple terminals are prepared ahead of time, no re-wiring is needed between measurements.
| Model | Description |
|---|---|
| ۷۷۲۰۶۱ | Screw (M4) terminal block (RJC (reference junction compensation) included). For use in combination with 772062. Compatible with MX110-UNV-M10, MX115-D05-H10, and MX115-D24-H10. |
| ۷۷۲۰۶۲ | Connection cable between input modules and the screw terminal block. Compatible with MX110-UNV-M10, MX115-D05-H10, and MX115-D24-H10. |
| ۷۷۲۰۶۳ | Plate with clamp terminals (RJC included). Compatible with MX110-UNV-M10, MX115-D05-H10, and MX115-D24-H10. |
| ۷۷۲۰۶۴ | Clamp terminals. Compatible with MX110-UNV-H04. |
| ۷۷۲۰۶۵ | Clamp terminals. Compatible with MX120-VAO-M08, MX120-PWM-M08, and MX125-MKC-M10. |
| ۷۷۲۰۶۷ | Plate with clamp terminals. Compatible with MX110-V4R-M06. |
| ۷۷۲۰۶۸ | Plate with clamp terminals (Built-in bridge resistance of 120 ohm). Compatible with MX112-Bxx-M04. |
| ۷۷۲۰۶۹ | Plate with clamp terminals (Built-in bridge resistance of 350 ohm). Compatible with MX112-Bxx-M04. |
| ۷۷۲۰۸۰ | Plate with screw (M3) terminal (RJC included). Compatible with MX110-UNV-M10, MX115-D05-H10, and MX115-D24-H10. |
| ۷۷۲۰۸۱ | Plate with clamp terminal for current with 10 ohm built in bridge resistance, applies to MX110-UNV-M10 |
| ۷۷۲۰۸۲ | Plate with clamp terminal for current with 100 ohm built in bridge resistance, applies to MX110-UNV-M10 |
| ۷۷۲۰۸۳ | Plate with clamp terminal for current with 250 ohm built in bridge resistance, applies to MX110-UNV-M10 |
