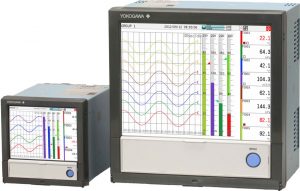

Touch Screen GX10_GX20

تماس بگیرید

Features

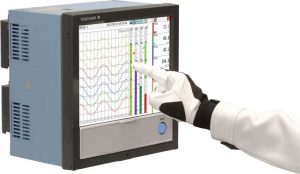

Smart User Interface

Smart Architecture

Smart Functionality

Networking

Reliable and Durable

توضیحات

Smart Architecture

Add I/O modules when you need more channels

The fully modular I/O design allows you to build the system with the channels you need today, and expand the unit’s capability any time in the future by purchasing and installing additional modules.

Wide-ranging input/output specifications

The 10 channel universal input module measures DC volts, thermocouple, RTD, and contact input signals. A 16 channel digital input module and a relay output module are also available.
- GX90XA Analog input module: DC voltage, DC current, thermocouple, RTD, contact
- New!　GX90XA-10-V1: High withstand voltage AI module: Max. common mode voltage 600V
- GX90XA-04-H0 High Speed AI Module: DC voltage, DC current, thermocouple, RTD, contact
- GX90XA-06-R1 4-Wire RTD Module: ۴-wire RTD, 4-wire resistance
- GX90YA Analog output module: Current output (Isolated between channels)
- GX90XD Digital input module: Remote control input or operation recording
- GX90YD Digital output module: Alarm output
- GX90WD Digital input/output module: Remote control input or operation recording/alarm output
- GX90XP Pulse intput module: Pulse signal data acquisition, integral count
- GX90UT PID control module: PID control (2 loop)

Front panel door available in white or black

Choose the best color for your operating environment.

Multichannel I/O

GX10 and GX20 support up to 30 channels and 100 channels of input respectively.
Up to 450 inputs available with an expansion unit that provides easy Ethernet connection to the recorder.

Smart Functionality

PID control

Enables PID and program control (up to 20 loops per system)
The web application enables remote operation and monitoring from a browser.
Various pre-configured control screens and display are available.
Setpoint program control function (up to 99 patterns)

Dual interval measurement

Users have the ability to choose two different scan intervals on a single GX system.

Direct output to printers

You can print out reports and snapshots directly from the GX, without going through a PC.

Convenient report creation function

Reports can be created automatically using a spreadsheet template created in Excel. You can also output to a PDF file.

Browser-based real time monitoring

A web browser can be used to fully access the GX using two operating modes— Data and Configuration.

۲۱ CFR Part 11 support (option)

Supports the U.S. FDA 21 CFR Part 11 (for pharmaceutical manufacturing).

Easy connection with WT series powermeters (option)

Easily acquire and record measured data from power measuring instruments (WT series, power analyzers).

DARWIN compatible functions (Ethernet, RS-422/485, RS-232)

Upgrade smoothly from DARWIN data acquisition instruments.

Multi-batch Function (option)

Recorder pre-defined channel groups to separate data files with independent start and stop control.

SLMP Communication (Mitsubishi PLC) (option)

Protocol function that enables connection from a GX to Mitsubishi Electric PLCs without sequence programs.

OPC-UA Server (option)

Data acquired by the GX can be accessed through Ethernet communication from a host system (OPC-UA client).

Aerospace Heat Treatment Supports heat treatment application AMS2750/NADCAP

Calibration correction schedule control function (option) Schedule management for periodically executing calibration correction configuration and the like.

GX90XA

GX90XA : Analog input module

GX90XA

Specifications

Model

GX90XA

Input type
(Inputs: 10)

DC voltage^*1, standardized signal^*1, thermocouple^*1, RTD^*2, DI^*1, DC current (with external shunt resistor)^*1, DC current^*3, resistance^*4

DCV

۲۰ mV, 60 mV, 200 mV, 1 V, 2 V, 6 V, 20 V, 50 V, 100 V^*5

Standard signal

۰٫۴-۲ V, 1-5 V

Resistance

۲۰, ۲۰۰, ۲۰۰۰ Ω

Thermocouple

R, S, B, K, E, J, T, N, W, L, U, W97Re3-W75Re25, KpvsAu7Fe, Platinel 2, PR20-40, NiNiMo, W/WRe26, N(AWG14), XK GOST

RTD

Pt100, JPt100, Cu10 GE, Cu10 L&N, Cu10 WEED, Cu10 BAILEY, Cu10 (20°C) α=۰٫۰۰۳۹۲, Cu10 (20°C) α=۰٫۰۰۳۹۳, Cu25 (0°C) α=۰٫۰۰۴۲۵, Cu53 (0°C) α=۰٫۰۰۴۲۶۰۳۵, Cu100 (0°C) α=۰٫۰۰۴۲۵, J263B, Ni100 (SAMA), Ni100 (DIN), Ni120, Pt25, Pt50, Pt200 WEED, Cu10 GOST, Cu50 GOST, Cu100 GOST, Pt46 GOST, Pt100 GOST, PT500^*4, PT1000^*4

Level, Contact

DC current

۰-۲۰ mA, 4-20 mA

Scan intervals

۱/۲/۵/۱۰/۲۰/۵۰/۱۰۰/۲۰۰/۵۰۰ms, 1/2/5s

Scan interval by type

Suffix code	Scan interval
Suffix code	۱ms	۲ms	۵ms	۱۰ms	۲۰ms	۵۰ms	۱۰۰ms	۲۰۰ms	۵۰۰ms	۱s	۲s	۵s
-U2	—	—	—	—	—	—	√	√	√	√	√	√
-C1	—	—	—	—	—	—	√	√	√	√	√	√
-L1	—	—	—	—	—	—	—	—	√	√	√	√
-T1	—	—	—	—	—	—	—	—	—	√	√	√
-H0	√	√	√	√	√	√	√	√	√	√	√	√
-R1	—	—	—	—	—	—	√	√	√	√	√	√
-V1	—	—	—	—	—	—	√	√	√	√	√	√

Power supply and consumption

Supplied from main unit, power consumption: 2 W or less

Insulation resistance

Between input circuits and internal circuitry: 20 MΩ or greater (at 500 V DC)

Withstand voltage

Between the input circuits and the internal circuitry: 3000 VAC for one minute (current input type and low withstand voltage type: 1500 VAC for one minute, high withstand voltage type: 3700 V AC for one minute)
Between analog input channels: 1000 V AC for one minute (excluding b terminals for universal input type) (low withstand voltage type: 400 VAC for one minute, high speed universal type: 3000 V AC for one minute)

Terminal types

M3 screw terminals or clamp terminals

Weight

Approx. 0.3 kg

*۱ Cannot be set for the current input type (type suffix code: -C1) or 4-wire RTD/resistance type (type suffix code: -R1).

*۲ Cannot be set for the current input type (type suffix code: -C1), electromagnetic relay type (type suffix code: -T1), low withstand voltage type (type suffix code: -L1) or high withstand voltage type (type suffix code: -V1).

*۳ Can only be set with current input type (type suffix code: -C1).

*۴ Can only be set with 4-wire RTD/resistance type (type suffix code: -R1).

*۵ Can only be set with high speed universal type (type suffix code: -H0).

Model and Suffix Codes

Model	Suffix Code					Description
GX90XA						Analog input module
Number of channels	-۰۴					۴ channels (-H0 type only)
	-۰۶					۶ channels (-R1 type only)
	-۱۰					۱۰ channels (-C1, -L1, -U2, -T1, -V1)
Type		-C1				Current, scanner type (isolated between channels)
		-L1				Low withstand voltage DCV/TC/DI, scanner type (isolated between channels)
		-U2				Universal, Solid state relay scanner type (3-wire RTD b-terminal common)
		-T1				DCV/TC/DI, Electromagnetic relay scanner type (isolated between channels)
		-H0				High speed universal, individual A/D type (isolated between channels)
		-R1				۴-wire RTD/resistance, scanner type (isolated between channels)
		-V1				DCV/TC/DI, high withstand voltage scannertype (Isolated between channels)
–			N			Always N
Terminal form				-۳		Screw terminal (M3)
Terminal form				-C		Clamp terminal
Area					N	General

GX90YA

GX90YA : Analog output module

Specifications

Model	GX90YA
Output type (outputs: 4)	Transmission output, manual output
Range	۴–۲۰ mA or 0–۲۰ mA
Output update interval	۱۰۰ msec (shortest)
Load resistance	۶۰۰ Ω or less
Resolution	۰٫۰۰۲%
Power supply and consumption	Supplied from main unit, power consumption: 3W or less
Insulation resistance	Between output circuits and internal circuitry: 20 MΩ (at 500 VDC)
Insulation resistance	Between output channel terminals: 500 VDC, 20 MΩ or greater
Withstand voltage	Between output circuits and internal circuitry: 1500 AC for one minute
Withstand voltage	Between output circuits: 500 VAC for one minute
Terminal type	M3 screw terminals or clamp terminals
Weight	Approximately 0.2 kg

Model and Suffix Codes

Model	Suffix Code					Description
GX90YA						Analog output module
Number of channels	-۰۴					۴ channels
Type		-C1				Current output (isolated between channels)
–			N			Always N
Terminal form				-۳		Screw terminal (M3)
Terminal form				-C		Clamped terminals
Area					N	General

GX90XD

GX90XD : Digital input module

GX90XD

Specifications

Model		GX90XD
Input types (Inputs: 16)		DI or pulse input^*1 (Open collector or non-voltage contact)
Input types (Inputs: 16)	ON/OFF detection	Open collector: Voltage of 0.5 V DC or less when ON, leakage current of 0.5 mA or less when OFF Non-voltage contact: Resistance of 200 Ω or less when ON, 50 kΩ when OFF
Contact rating		۱۲ V DC, 20 mA or more
Power supply and consumption		Supplied from main unit, power consumption: 0.7 W or less
Insulation resistance		Between input terminals and internal circuitry: 20 MΩ or greater (at 500 V DC)
Withstand voltage		Between input terminals and internal circuitry: 1500 V AC for one minute
Terminal types		M3 screw terminals or clamp terminals
Weight		Approx. 0.3 kg

Pulse input specifications^*1

Counting system	The rising edge of the pulse is counted.
Max. pulse period	۲۵۰Hz (The chattering filter : OFF) ۱۲۵Hz (The chattering filter : ON)
Minimum detection pulse width	Low (close), High (open), both is 2 ms or more
Pulse detection period	۱ms
Pulse measurement accuracy	± ۱ pulse
Pulse count interval	Measurement interval
Filter	The chattering filter can be switched On/Off. (When the chattering filter is off, connect GX/GP so that it is not affected by the noise.)

*۱ Integration requires the math function (optional code /MT).

Model and Suffix Codes

Model	Suffix Code					Description
GX90XD						Digital input module
Number of channels	-۱۶					۱۶ channels
Type		-۱۱				Open collector/Non-voltage, contact (shared common), Rated 5 VDC
–			N			Always N
Terminal form				-۳		Screw terminal (M3)
Terminal form				-C		Clamp terminal
Area					N	General

GX90YD

GX90YD : Digital output module

GX90YD

Specifications

Model	GX90YD
Output types (outputs: 6)	Relay contact (c contact)
Rated load voltage	۱۰۰ to 240 V AC or 5 to 24 V DC
Max. load voltage/current	۲۶۴ VAC or 26.4 VDC, 3A/point (resistance load)
Power supply and consumption	Supplied from main unit, power consumption: 1.4 W or less
Insulation resistance	Between output terminals and internal circuitry: 20 MΩ (at 500 VDC)
Withstand voltage	Between output terminals and internal circuitry: 3000 V AC for one minute
Terminal types	M3 screw terminals
Weight	Approx. 0.3 kg

Model and Suffix Codes

Model	Suffix Code					Description
GX90YD						Digital output module
Number of channels	-۰۶					۶ channels
Type		-۱۱				Relay, SPDT(NO-C-NC)
–			N			Always N
Terminal form				-۳		Screw terminal (M3)
Area					N	General

GX90EX

GX90EX : Expansion module

GX90EX

Model and Suffix Codes

Model					Description
GX90EX					I/O expansion module
Port	-۰۲				۲ Ports
Type		-TP1			Twisted pair cable
–			N		Always N
Area				-N	Standard accessories

GX90WD

GX90WD : Digital input/output module

GX90WD

Specifications

Model		GX90WD
Input types (Inputs: 8)		DI or pulse input^*1 (Open collector or non-voltage contact)
	ON/OFF detection	Open collector : Voltage of 0.5 V DC or less when ON, leakage current of 0.5 mA or less when OFF Non-voltage contact : Resistance of 200 Ω or less when ON, 50 kΩ when OFF
	Contact input rating	۱۲ VDC, 20 mA or more
Output type (outputs: 6)		Relay contact (C contact)
	Rated load voltage	When connected to the main circuit (fi rst-order power supply), 150 VAC or less When connected to a circuit derived from the main circuit (second-order power supply), 250 VAC or less (the main circuit is 300 VAC or less and uses an isolated transformer) or 30 VDC or less
	Max. load current	۲ A (DC)/2 A (AC), resistive load
Power consumption		۱٫۹ W or less
Insulation resistance		Between input terminals and internal circuitry: 20 MΩ or greater (at 500 VDC) Between output terminals and internal circuitry: 20 MΩ or greater (at 500 VDC)
Withstand voltage		Between input terminals and internal circuitry: 1500 VAC for one minute Between output terminals and internal circuitry: 3000 VAC for one minute
Terminal types		M3 screw terminals
Weight		Approx. 0.3 kg

Each unit (GX/GP main unit and expandable I/O), can use 1 module only.

Pulse input specifications^*1

Counting system	The rising edge of the pulse is counted.
Max. pulse period	۲۵۰Hz (The chattering filter : OFF) ۱۲۵Hz (The chattering filter : ON)
Minimum detection pulse width	Low (close), High (open), both is 2 ms or more
Pulse detection period	۱ms
Pulse measurement accuracy	± ۱ pulse
Pulse count interval	Measurement interval
Filter	The chattering filter can be switched On/Off. (When the chattering filter is off, connect GX/GP so that it is not affected by the noise.)

*۱ Integration requires the math function (optional code /MT).

Model and Suffix Codes

Model	Suffix Code					Description
GX90WD						Digital input/output module
Number of channels	-۰۸۰۶					۸ channel DIs, 6 channel DOs
Type		-۰۱				Open collector/non-voltage contact (shared common), rated 5 VDC; Relay, SPDT, (NO-C-NC)
–			N			Always N
Terminal form				-۳		Screw terminal (M3)
Area					N	General

GX90XP

GX90XP : Pulse input module

Specifications

Model	GX90XP
Number of inputs	۱۰
Measurement interval	۱۰۰ ms (shortest)
Input type	Contact (open collector, voltage-free contact), level (5 V logic)
Input range	Up to 20 kHz^* * ۳۰ Hz when the chattering filter is in use (On)
Minimum detection pulse width	۲۵ μs^* * ۱۵ ms when the chattering filter is in use (On)
Measurement accuracy	Count ± ۱ pulse During integration, the following accuracies are added. Upon MATH start: +1 measuring period Upon MATH stop: -1 measuring period * Integration requires the math function (optional code /MT).
Chattering filter	Removes chattering up to 5 ms (can be turned on/off on each channel)
Hysteresis width	Approx. 0.2 V
Contact, transistor rating	Contact: 15 V DC or higher and 30 mA or higher rating. Minimum applicable load current 1 mA or less. Transistor: With the following ratings: Vce > 15 VDC, Ic > 30 mA
Maximum input voltage	±۱۰ V DC
Insulation resistance	Between input terminals and internal circuitry: ۲۰ MΩ or greater at 500 V DC
Withstand voltage	Between input terminals and internal circuitry: 1500 V AC for 1 minute

Model and Suffix Codes

Model	Suffix code					Description
GX90XP						Pulse input module
Number of channels	-۱۰					۱۰ channels
Type		-۱۱				DC voltage/open collector/non-voltage contact (shared common), rated 5 VDC
—			N			Always N
Terminal form				-۳		Screw terminal (M3)
Terminal form				-C		Clamp terminal
Area					N	General

GX90UT

GX90UT : PID control module

Specifications

Model		GX90UT
Control loops	Number of loops	۲
Analog input (measured input)	Measured points	۲
	Measurement type	DC voltage (DCV)/standardized signal, TC/RTD, DI (LEVEL and non-voltage contact)/DC current (with external shunt resistance)
	Scan (control) interval	۱۰۰ ms or 200 ms (system global setting)
Analog output (control output/transmission output/sensor power supply)	Outputs	۲
	Output type	Power supply for current, voltage pulse, or sensors.
		Current output: 4-20 mA or 0-20 mA
		Voltage pulse output: ON voltage = 12 VDC or more (load resistance 600 Ω or more), OFF voltage = 0.1 VDC or less
		Can be used as a sensor power supply (13.0-18.3 VDC)
Digital input (switching the SP, operation mode, etc.)	Inputs	۸
	Input format	Non-voltage contact and open collector
	Input format	Contact rating: 12 VDC or more, 20 mA or more
Digital output (of alarms, events, etc.)	Outputs	۸
	Output format	Open collector (sink type)
	Output contact capacity	Max 24 VDC, 50 mA
Withstand voltage/insulation resistance		See PID control module general specifications (GS 04L51B01-31EN)
Terminal type		M3 screw terminals
Weight		Approximately 0.3kg

Model and Suffix Codes

Model	Suffix Code					Description
GX90UT						PID control module
Number of loops	-۰۲					۲ loops
Type		-۱۱				۸ DIs, 8 DOs
—			N			Always N
Terminal form				-۳		Screw terminals (M3)
Area					N	General

دانلودها

Software

Technical Information

DARWIN Replacement Guide (۸٫۸ MB)
GX/GP Custom Display Setup Guide (۶۴۲ KB)
Effectively Using SMARTDAC+; Software Introduction (۶٫۱ MB)
Applying Yokogawa Recorders and Controllers to Heat Treatment Applications in the Aerospace Industry (۴٫۳ MB)
Reduce Risk by Eliminating Paper Chart Records (۱٫۶ MB)
Recorders, Data Loggers, and Control Products Security Standard (۴۲۰ KB)
SMARTDAC+ Advanced Security Functions White Paper for FDA 21 CFR Part 11 (۵۸۷ KB)
High-speed Measurement Application High-speed Measurement/ Dual Interval Measurement Feature LR Replacement (۸٫۹ MB)
SMARTDAC+ Loop Control Function, Program Control Function (/PG Option) (۹٫۵ MB)
SMARTDAC+ CX Replacement Guide (Model and Suffix Code Replacement) (۲٫۲ MB)

Drawings

Analog Input Module GX90XA (۵۳۱ KB)
PID Control Module GX90UT (۲۱۹ KB)
Analog Output Module GX90YA (۲۶۵ KB)
Expandable I/O GX60 (۵۷۵ KB)
Pulse Input Module GX90XP (۳۲۹ KB)
Digital Input/Output Module GX90WD (۲۲۹ KB)
Paperless Recorder GX10 (۹۸۶ KB)
Paperless Recorder GX20 (۹۷۶ KB)
Expansion Module GX90EX (۲۰۷ KB)
Digital Input Module GX90XD (۳۷۸ KB)
Digital Output Module GX90YD (۲۶۷ KB)

نقد و بررسی‌ها

هنوز بررسی‌ای ثبت نشده است.

.فقط مشتریانی که این محصول را خریداری کرده اند و وارد سیستم شده اند میتوانند برای این محصول دیدگاه(نظر) ارسال کنند.

Touch Screen GX10_GX20

Features

Smart User Interface

Smart Architecture

Smart Functionality

Networking

Reliable and Durable

توضیحات

Smart Architecture

Add I/O modules when you need more channels

Wide-ranging input/output specifications

Front panel door available in white or black

Multichannel I/O

Smart Functionality

PID control

Dual interval measurement

Direct output to printers

Convenient report creation function

Browser-based real time monitoring

۲۱ CFR Part 11 support (option)

Easy connection with WT series powermeters (option)

DARWIN compatible functions (Ethernet, RS-422/485, RS-232)

Multi-batch Function (option)

SLMP Communication (Mitsubishi PLC) (option)

OPC-UA Server (option)

Aerospace Heat Treatment Supports heat treatment application AMS2750/NADCAP

GX90XA

GX90XA : Analog input module

Specifications

Model and Suffix Codes

GX90YA

GX90YA : Analog output module

Specifications

Model and Suffix Codes

GX90XD

GX90XD : Digital input module

Specifications

Pulse input specifications*1

Model and Suffix Codes

GX90YD

GX90YD : Digital output module

Specifications

Model and Suffix Codes

GX90EX

GX90EX : Expansion module

Model and Suffix Codes

GX90WD

GX90WD : Digital input/output module

Specifications

Pulse input specifications*1

Model and Suffix Codes

GX90XP

GX90XP : Pulse input module

Specifications

Model and Suffix Codes

GX90UT

GX90UT : PID control module

Specifications

Model and Suffix Codes

دانلودها

Brochures

Instruction Manuals

General Specifications

Software

Technical Information

Drawings

نقد و بررسی‌ها

محصولات مرتبط

گیج فشار EJA510E

ترانسمیتر فشار بیسیم EJX310B

ترانسمیتر اختلاف فشار بیسیم EJX118B

Pulse input specifications^*1

Pulse input specifications^*1
