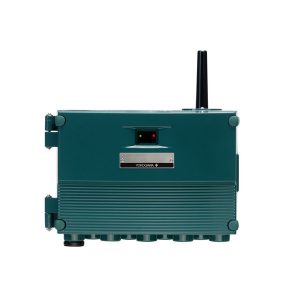

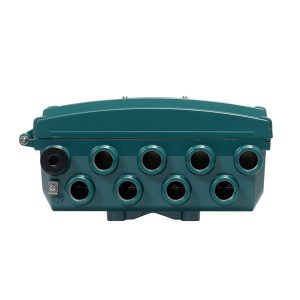

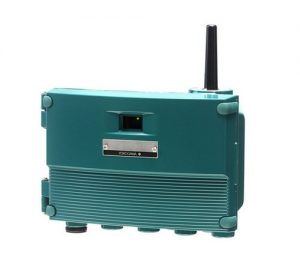

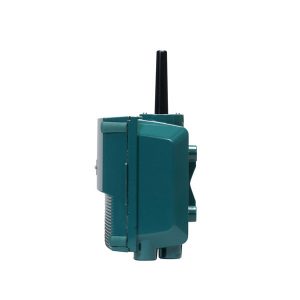

ترانسمیتر دما با چند ورودی YTMX580

Easy Setup: Field Wireless

• Cut back on troublesome wiring, reducing setup costs.
• Traditional wired connections can easily be switched to a wireless solution.

  ISA100.11a International Wireless Communication Standard²

  • Advanced encryption maintains communication security.
  • Multi-vendor communication supports transmitters from a variety of manufacturers.

    Reliable, Fast, 8-ch Multipoint Measurements

    • ۸ ch universal input: Perfect for multipoint measurement applications.
    • High performance measurements with intervals as fast as 1 sec (3 ch), or 2 sec (8 ch).

    • Superb environmental tolerance:

      Operating temperature of -40 to 85°C

      (-۴۰ to 185°F)³;

      Protection level of IP66/IP67 & NEMA 4X.

      Explosion protection

      • FM, CSA: Intrinsically safe Approval, non-incendive (Class I) Approval
      • ATEX, IECEx: Intrinsically safe Approval
      • TIIS: Intrinsically safe Approval

        Easy Battery Maintenance

        • Typical battery life is 6 years (measuring at 60 seconds intervals).
        • Battery packs can be swapped even in hazardous areas.

          Supporting Plant Wide Field Wireless

          • Full Redundancy(Duplicate, Duocast)
          • ۴hops
          • Remote Antenna + Extension cable

1. Does not support explosion proof standards for 4 to 20 mA DC signal input.
2. Industrial wireless communication standard from the International Society of Automation (ISA).

3. TIIS: –۲۰ to 60°C

   FM, CSA, ATEX, IECEx: –۵۰ to 70°C
